Product Description:

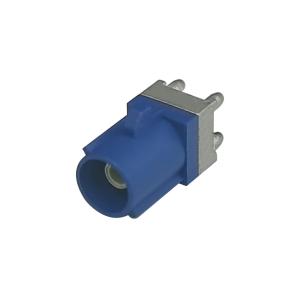

FAKRA PCB Connectors - Robust, Color-Coded Solutions for Automotive Applications
FAKRA connectors can significantly benefit automotive applications, providing secure data transmission to ensure seamless communication between automotive components. To further simplify installation and reduce assembly errors – the connectors come color-coded, enabling efficient use of space, particularly with the vertical PCB plug variant, which is beneficial when space is limited. Moreover, mechanical keying is provided with these connectors to ensure foolproof mating, helping to increase system reliability.
Equipped with robust shielding, FAKRA connectors are also ideal for protecting against electromagnetic interference, thus maintaining signal integrity even in very noisy automotive environments. On top of that, these connectors deliver reliable performance, as they meet stringent industry standards. They can be found in a variety of applications, such as infotainment systems, navigation modules, telematics, cameras, and more.
FAKRA connectors provide a cost-effective, high-speed solution for automotive applications. Owing to their durability and future-readiness, they are essential for improving functionality, safety, and performance of vehicles.
Features:
- Reliable data transfer: FAKRA connectors ensure dependable communication between automotive components.
- Easy installation: Color-coded design simplifies FAKRA connector installation and saves time.
- Space-efficient: FAKRA connectors optimize limited space on printed circuit boards.
- Foolproof mating: Mechanical keying ensures secure and precise connector mating.
- Enhanced safety: FAKRA connectors provide secure connections, promoting overall system safety.
- Robust shielding: FAKRA connectors protect against electromagnetic interference for reliable data transfer.
- Compatibility and standards compliance: FAKRA connectors meet automotive industry standards for compatibility and reliability.
- Versatility: FAKRA connectors work with various automotive features, showcasing their adaptability.
- Durability: FAKRA connectors withstand harsh automotive conditions, ensuring long-lasting performance.
- MOQ:20 PCS
Technical Parameters:
| Parameter | Information |
| Application | Data Transmission, Coaxial |
| Connector Type | FAKRA PCB Connector |
| Impedance | 50Ω |
| Mounting Type | PCB Mount |
| Body Orientation | Straight Type |
| Number of Ports | Single Port |
| Coding / Color (Automotive) | C-code,Blue Color |
| Operating Temperature | -40°C ~ +105°C |
| Frequency range | DC up to 6 GHz |
| High data rates | up to 8 Gbps |
| Return loss | ≥ 18 dB |
| Mating cycles | ≥ 25 |
| Application | Data Transmission, Coaxial |
Applications:
- Infotainment systems: FAKRA connectors enhance in-car entertainment and communication.
- Navigation modules: FAKRA connectors enable accurate GPS data transmission for navigation.
- Advanced Driver Assistance Systems (ADAS): FAKRA connectors support collision warnings and adaptive cruise control in ADAS.
- Telematics systems: FAKRA connectors facilitate remote tracking and diagnostics in telematics.
- Rearview Camera Systems: FAKRA connectors improve rear visibility and assist with parking.
- Dashboard displays: FAKRA connectors connect displays for easy data transfer.
- Vehicle Control Modules: FAKRA connectors optimize vehicle performance and functionality.
- Audio systems: FAKRA connectors deliver high-quality sound experiences.
- Surround-view camera systems: FAKRA connectors provide comprehensive views for safety.
- Wireless communication: FAKRA connectors enable seamless wireless connectivity.
FAKRA Coding:
Customization:
LEADSIGN provides OEM and ODM services. As a manufacturer of FAKRA automotive connectors, LEADSIGN offers high-quality products with excellent performance. With an experienced design team and advanced production facilities, we are confident that we can meet your needs and specifications.
Support and Services:
1.Accept OEM and ODM orders.
2.Samples are free of charge, only the customer has to pay the courier fee.
3.Support multiple logistics methods.
4.Fast delivery time and first-class service.
